Flexible Intermediate Bulk Containers (FIBC’s)

The FIBC is a large bag which is made of woven polypropylene (PP) fabric that is usually extrusion coated to provide additional barrier and leak-profanes. The bag is Prepared by stitching and adding accessories like handles or straps/loops to facilitate mechanized handling.

The bags are usually printed in one or two colors. They also come equipped with aids to filling, closing and discharging like flaps, valves and spouts The capacity of each bag typically ranges from about 200 kgs to 2000 kgs depending on the material used.

The design and construction of each bag depends on the material and weight/volume to be handled and the method of handling, filling and discharge. Generally, the bag has to be custom-designed for each individual user. The bags are usually used in combination with pallets.

We provide FIBCs in following combination

LIFTING OPTIONS

  •   4 Corner Lift Straps

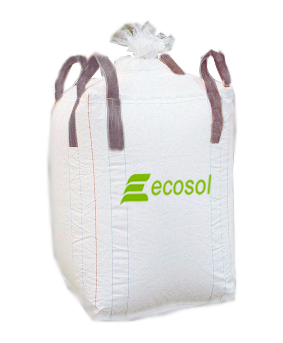

  •   Cross corner Lift Straps
  •   Stevedore Straps for Center Pick-up ( Crane-Lift)
  •   Loop Extender
  •   Bottom Running Loops

BAG TYPES

  • U-Panel Bags
  • 4 Panel Bags
  • Baffle Bags
  • Single loop Bags
  • Double loop Bags

DISCHARGING OPTIONS

  • Plain Bottom
  • Bottom Spout
  • Bottom spout with cover
  • Full Open Bottom
  • Remote Operation Discharge

BODY MATERIALS

  • 3.0 oz ( 100 GSM ) to 9.0 oz ( 300 GSM ) Woven polypropylene depending on gross weight requirements
  • Plain (Uncoated) Fabric
  • Coated Fabic
  • UV Treated Fabric
  • White Fabric – Standard Color
  • Color Fabric – Available upon request o All Polypropylene Bags and Materials

WEIGHT CAPACITY

  • Designed to accommodate loads up to 4000 Lbs.

LINER TYPE

  •   Inserted in the Bag
  •   Sewn-In
  •   Glued-In
  •   Form Fitted Liners

IDENTIFICATION

  • Printing
  • Labels
  • Document Pouch

CUSTOM FEATURES

  • Sift-Proof Bags
  • Tripple dust proof bags
  • Felt on outside of seam

FILLING OPTIONS

  • Open Top
  • Duffle Top
  • Fill Spout

FIBC Bags Product Portfolio

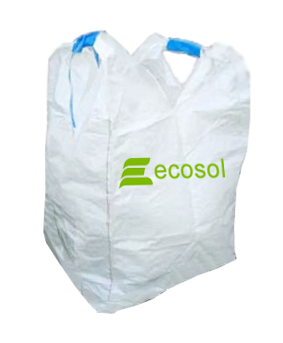

2-Loops Bags

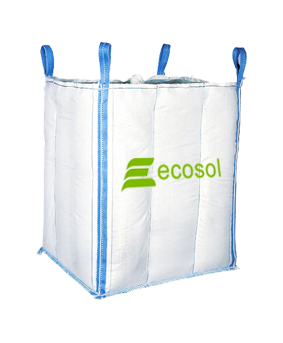

Baffle Liner Bags

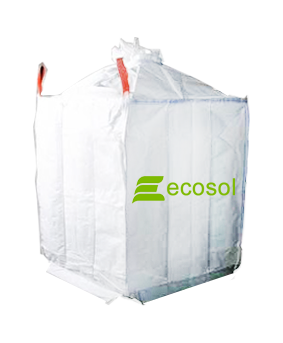

Conical Bags

Tubular Bags

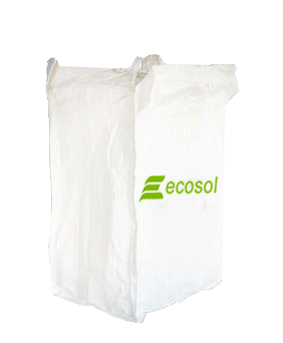

Tunnel Loop Bags

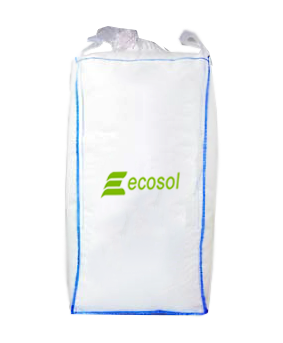

Type B Bags

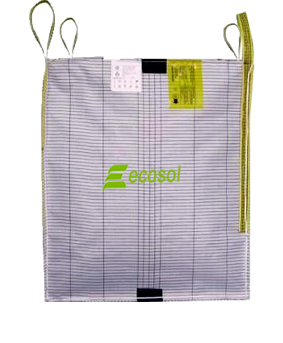

Type C Bags

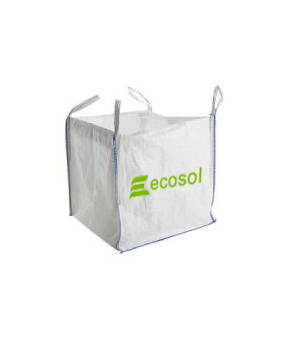

U+2 Panel Bags

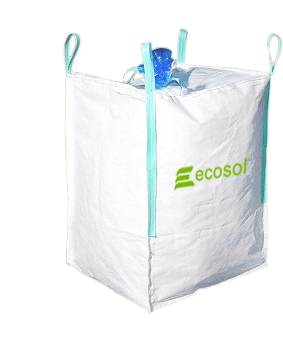

Standard Bags

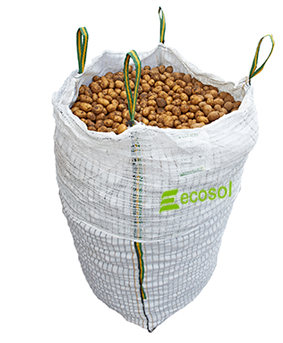

Ventilated Bags

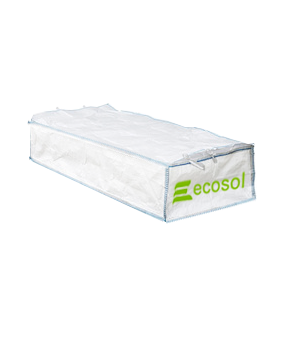

Container Bags
